USED EQUIPMENT – SCROLL DOWN FOR ALL OPTIONS

Here you can see the Used Equipment IDE has to offer.  With the vast reach of our affiliates, we are able to offer an unparalleled used equipment offering to the foundation industry.  If you would like, contact us today and see how we can help you acquire a “new-to-you” piece of equipment or sell your current used equipment.

USEDCASAGRANDE B400 XP-2 HYDRAULIC PILING RIG

  • Approximately 28 hours on machine
  • Configuration: CFA, Displacement, SoilMixing
  • Operating weight of approximately 125 tons
  • Casagrande Centralized Monitoring, Diagnostic and Setting Control System: 12.1″ graphic color touch screen display which allows settings and provides information about the machine condition, allows and assists in fault diagnostics – SPM control system – Smart Power Management – which monitors the instantaneous power flows in real time and allocates the full available power to the job duties – Mast lifting and lowering aid Drilling depth measurement and automatic verticality system for mast Automatic opening and closing of the body doors complete with integrated decking
  • G&H instrumentation for measuring, displaying and digital recording of the following parameters: Drilling Depth – Concrete Pressure – Concrete Volume – Concrete Capacity – Mast inclination (two axis) – The instrument is complete with software for processing the data on a PC.
  • Electrical System: Nominal Voltage of 24 V – Cold Cranking Capacity of 830 A
  • Enclosed Cab: Air Conditioning System. It is designed according to modern ergonomics practice, is mounted on silent blocks to isolate it from vibrations. Adjustable seat, radio and CD player, electric windscreen wipers, front and side windows, soundproofed arrangement and protective screens ensure operator comfort and safety. Lateral rollaway platform.
  • Rotary Head: H47/47 – Maximum drilling/rotation speed: 50 RPM – Maximum torque: 470 kNm – Inverse rotation speed for discharge: 50 RPM – Hydraulic valve to prevent the dropping of the rotary head
  • Main/Front Winch: Zollern 360 kN – Nominal line pull on first layer – controlled load-lowering type, driven by a variable displacement, hydraulic axial piston motor
  • Auxiliary/Rear Winch: Casagrande 140 kN – Nominal line pull on first layer – controlled load-lowering type, driven by a fixed displacement, hydraulic axial piston motor. Fitted with hydraulically released multi-disc brakes.
  • Crowd Winch: Casagrande 300 kN – Max crowd force of 600 kN – Max extraction force of 600 kN – Stroke of 21 meters – Return pulleys on upper mast element – Return pulleys on slide – Complete with return pulleys and hydraulic tightening device for rope.
  • Engine: Turbocharged Diesel, Cummins X15, Tier 4 Final, 604 HP at 2100 rpm
  • Wired Remote Control
  • CFA (Continuous Flight Augers) kit having maximum diameter of 47 inches
  • Telescopic Kelly Bars for a maximum borehole diameter of 118 inches in PDC and optional in PDW
  • Kit for High Depth Displacement Piles for maximum depth of 109 feet
  • Hydraulic Oil: Agip Arnica 46 (this is a high performance, antiwear, hydraulic oil specifically designed to meet the needs of modern, high pressure, industrial and mobile equipment – petroleum based – capacity of the oil tank is 1000 L)
  • Year: 2020
  • Automatic Lubrication System: On demand, a centralized lubrication system, where the machine I lubricated by a pump which supplies the fiction parts by means of a network of hoses and distributors. A control unit checks operation of the system and indicates any malfunctioning. The system is provided with a safety valve, which limits the maximum pressure which the grease can reach.

Available for Sale, Rent or RPO.

USEDCASAGRANDE B275 XP HYDRAULIC PILING RIG

  • Approximately 3,375 hours on machine
  • Configuration: CFA, Displacement, SoilMixing
  • Operating weight of approximately 85-89 tons
  • Casagrande Centralized Monitoring, Diagnostic and Setting Control System: 10.4″ graphic color display to show working parameters, complete engine and electric system check-up, mast lifting and lowering aid, drilling depth measurement and automatic verticality system for mast
  • Rotary Head: H30.30 – Maximum drilling/rotation speed: 29 RPM – Maximum torque: 275 kNm – Inverse rotation speed for discharge: 125 RPM
  • Main/Front Winch: controlled load-lowering type, driven by a fixed displacement, hydraulic axial piston motor
  • Auxiliary/Rear Winch: controlled load-lowering type, driven by a fixed displacement, hydraulic axial piston motor. Fitted with hydraulically released multi-disc brakes – Complete with guide roller for correct winding of the rope
  • Crowd Winch: Max crowd force of 400 kN – Max extraction force of 400 kN – Stroke of 21 meters – Complete with return pulleys on mast and rotary head
  • Engine: Turbocharged Diesel, Cummins QSG 12, Tier 4 Final, 451 HP at 1800 rpm
  • CFA (Continuous Flight Augers) kit having maximum diameter of 47 inches
  • Telescopic Kelly Bars for a maximum borehole diameter of 79 inches
  • Year: 2017

Available for Sale, Rent or RPO.

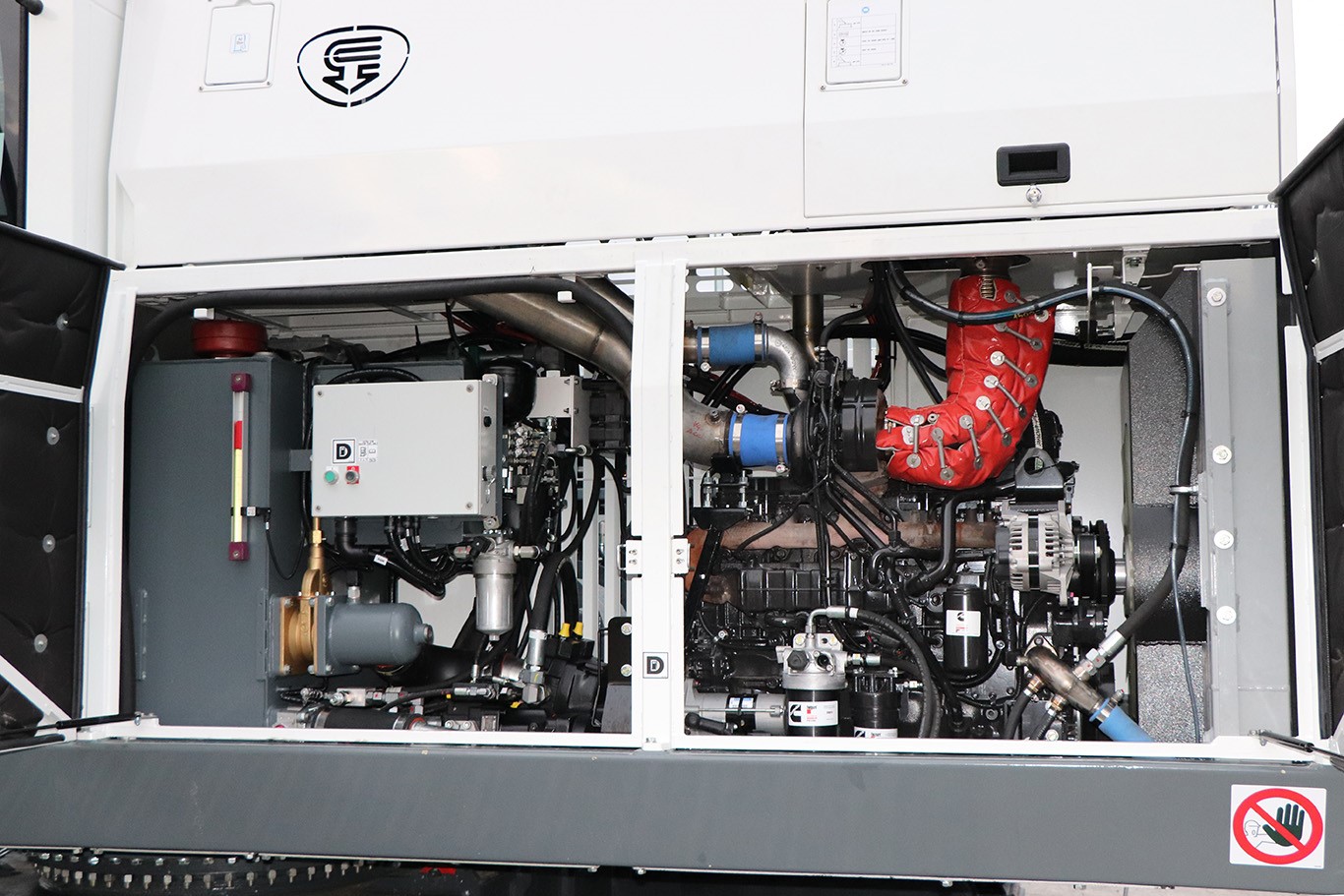

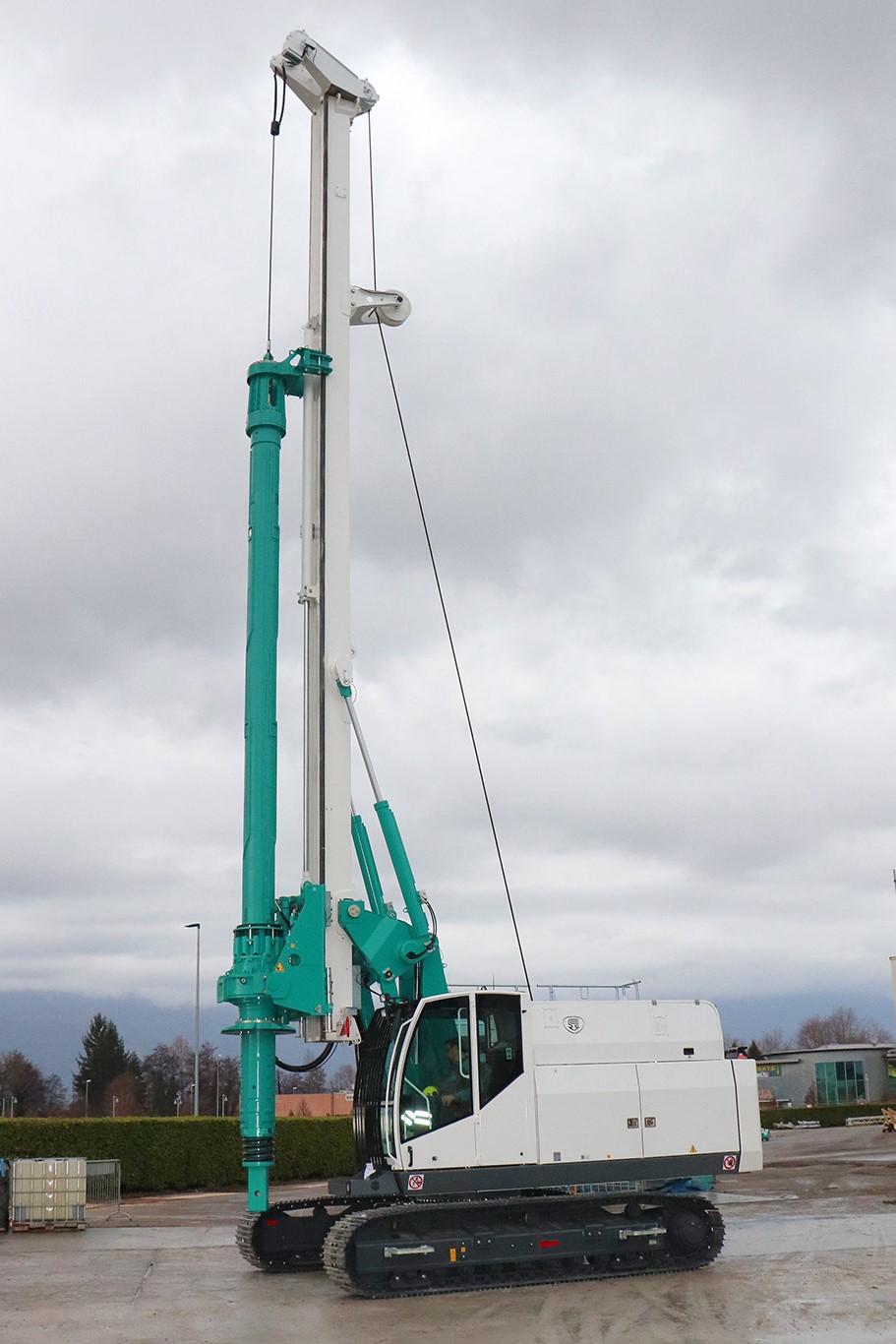

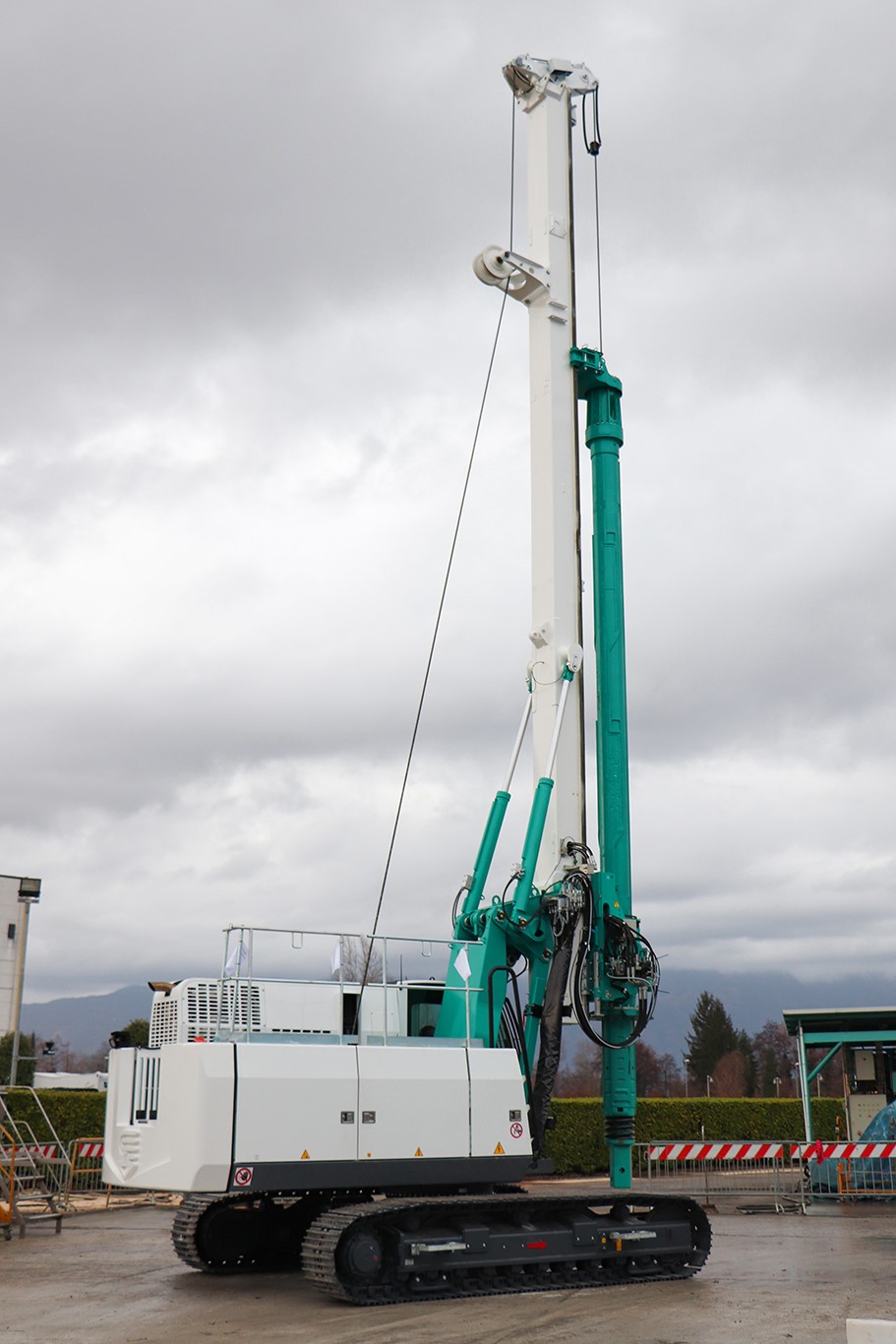

USEDCASAGRANDE C30 HYDRAULIC RIG

  • Approximately 621 hours on Machine
  • 7” screen display for visualization and setting of drilling parameters
  • Protective roof guard (FOPS compliant)
  • Air condition system
  • Cab side catwalk
  • 2 meter (78 in.) max diameter
  • 33 rpm max drilling speed
  • Max depth 42,3 m (136 ft)  bored piles/19,8 m (64 ft) C.F.A. piles

Overview:

OVERVIEW: This Casagrande hydraulic rig is fast and powerful, controlled free-fall winch with line pull of 150 kN (33,721 lbf). Powerful hydraulic rotary head with torque of 125 kNm (92,195 lb-ft). Mast support with sturdy structure.

Available for Sale, Rent or RPO.

USED – 2019 MARINI MR-C90 DRILL RIG

  • Approximately 950 hours on Machine
  • 115hp Tier 4 Engine
  • Suited for 7m (~22ft)
  • Radio Remote Control
  • Krupp HB45 Percussive Head – Max rotation 170rpm

Overview:

This New Marini MR-C90 is loaded with features.  It has a three piece arm for unparalleled articulation in limited areas.  With a Krupp HB45 percussive rotary head this unit represents an unequalled asset for anchoring and tieback work.  With quality European manufacturing and local lead times on spare parts and technicians; this unit will be an asset for any company looking to expand their capabilities in anchoring and tieback works.

Available for Sale, Rent or RPO.

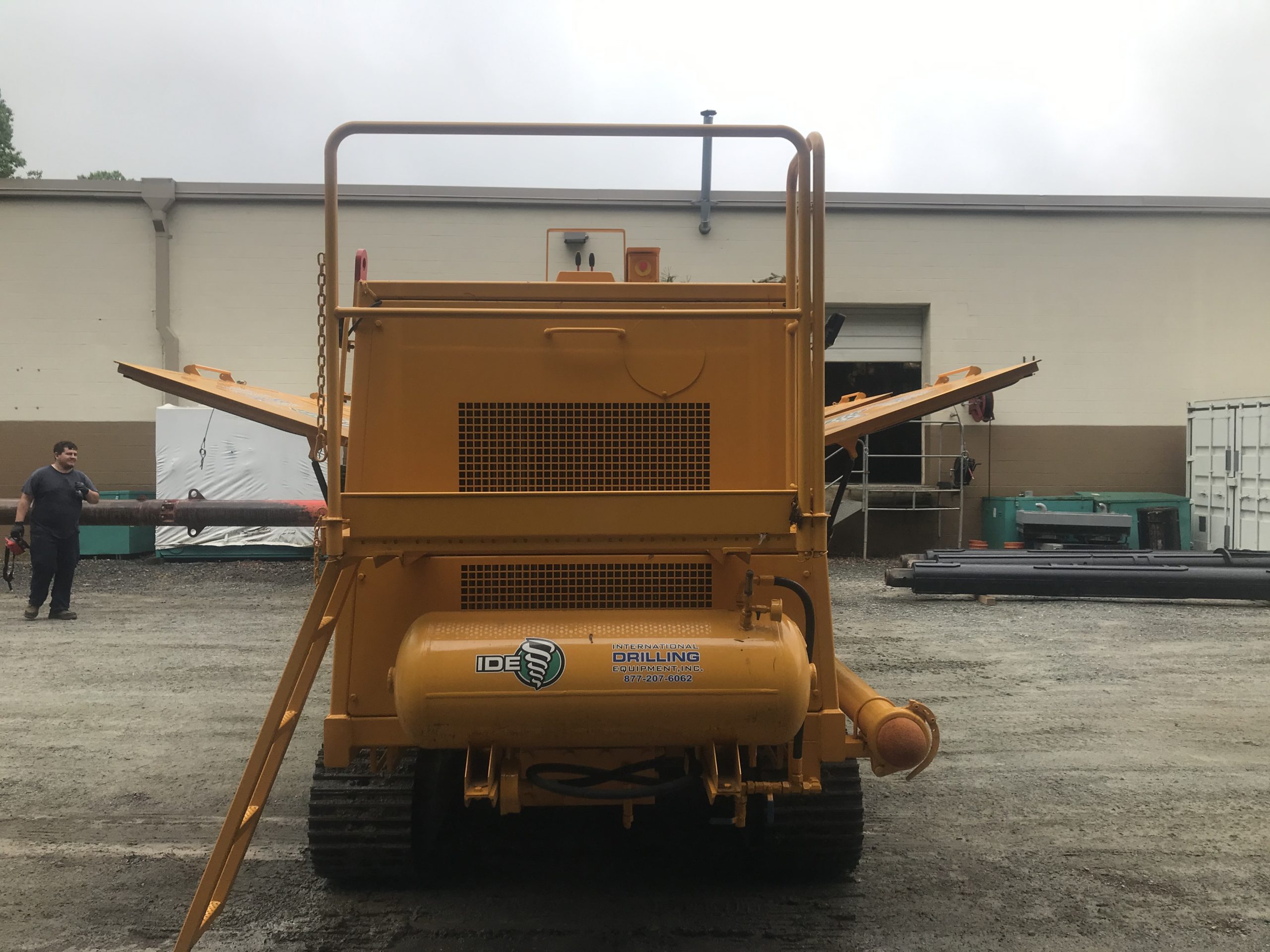

USED – Metax JMP5 Grout Plant and Pump

  • Approximately 80 hours on Machine
  • 74 gallon Colloidal mixer, hydraulically driven
  • 60 gallon water tank on mixing plant
  • 132 gallon agitator tank
  • QV9 Progressive cavity grout delivery pump
  • Max volume – 52 gallon/minute @ 160psi
  • 2.8L Cummins Diesel Engine – 65hp
  • Forklift Pockets for easy loading and unloading for transport
  • Dry weight 5900lbs

Available for Sale, Rent or RPO.

USED – PTC 20RHFV Vibratory Hammer

**ALL Reasonable Offers Will Be Considered**

*Only used for equipment demonstrations* – Like New.
Featuring PTC High Frequency and Variable Moment Technology, allowing for vibration free start-up/shutdown and an adjustment of the vibration amplitude.
• 0-1750 in.lbs – Fully adjustable
• 2300 rpm
• 170t Agriplex clamp for Sheet piles and Beams.  Also compatible with Duplex clamps for pipes 10in-40in and Multigrip for concrete and timber piles
• 9400 lbs with Single 170t Agriplex clamp
• Stacked gearbox style perfect for fixed mast application
• Includes stand for Installation and storage

This unit was used for demonstration purposes only. Take advantage of the low usage but used pricing!
**Sale Price of $145,000 USD**
